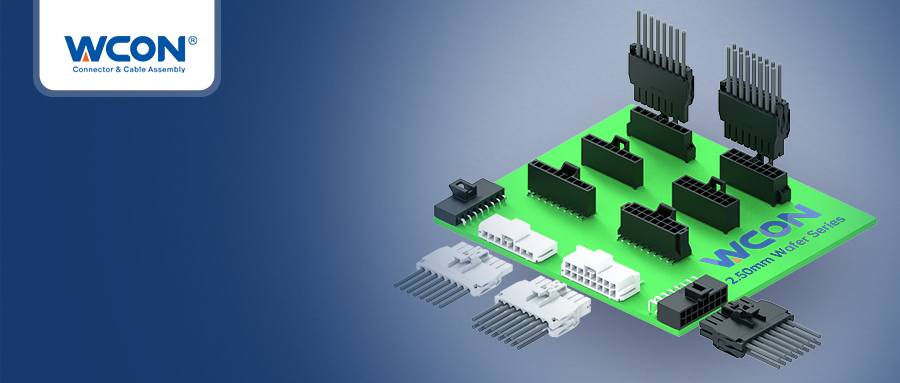

WF2508 Series Wire to Board Automotive Connectors

       Wire-to-board connectors are an important bridge between electronic devices, their performance and quality directly affect the stability and reliability of the entire system. Especially in the automotive, industrial, medical, and other high-precision, high-demand areas, the market demand has shifted to the pursuit of higher reliability, safety, and stability.WF2508 series wire-to-board automotive connectors are precisely for this market demand, for all kinds of high-demand application scenarios to provide solutions.

.

       WF2508 series wire-to-board connector is a 2.50mm pitch, compression type, anti-staggered structure, and with the terminal secondary locking structure, for the equipment to provide signal transmission of automotive connector products.

.

.

PRODUCT FEATURES

 Flexible mounting and matching methods

Tactile and acoustic feedback for safe fit

TPA construction increases wire retention

Multi-contact, stable contact, anti-vibration and shock resistance

.

SPECIFICATIONS

Current Rating：8.0 A

Voltage Rating：250 V AC/DC

Operation Temperature：-40°C~+125°C

Contact Resistance：≤20 mΩ

Insulation Resistance：1000MΩ以上

Withstanding Voltage：AC 1500V/ min

Wire Range：AWG#20～#26

.

STANDARDS：

QC/T 1067.1-2017

GB/T 5095.9-1997

.

PRODUCT APPLICATIONS：

1. Automotive: ADAS, lamp control and other key parts, providing stable and reliable signal transmission for automobiles.
2. Industrial: industrial control field, to meet the needs of connection in various complex environments.
3.Medical: monitors and other equipment, to ensure the normal operation of medical equipment.

.

PRODUCT IMFORMATION
