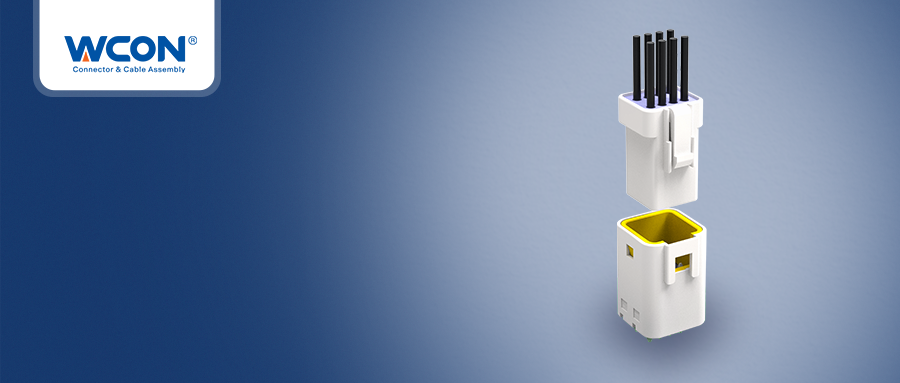

720001 series products: small size, high protection level

        The 720001 series is a 2.00mm-pitch, highly protected, automotive-grade connector intended for wire-to-board and wire-to-wire applications.

.

        The product is engineered to attain the IPX7 waterproof rating through the plastic shell's locking mating and the extruded sealing ring design. The product can be submerged in water at a certain depth for a specific period without affecting its performance, ensuring that the vehicle can operate safely in adverse weather and complex road conditions.

.

.

PRODUCT CARACTERISTICS

Postion: 2, 3, 4 (single row), 6, 8 (double row)

Protection class IPX7, waterproof immersion

With positioning post design, accurate positioning

Terminals with box type, two-point contact, double elasticity design, stable and reliable connection

.

SPECIFICATIONS

Current Rating：3.0 A （AWG #22）

Voltage Rating：100 V AC/DC

Operation Temperature：-40°C~+105°C

Contact Resistance：Initial≤10 mΩ ，After environmental test≤15mΩ

Insulation Resistance：1000MΩ以上

Withstanding Voltage：AC 1000V/ min

Wire Range：Skin Diameter/AWG#26～#22，Cable Outer Diameter/ø1.4～1.7mm

.

STANDARDS：

QC/T 1067

.

PRODUCT APPLICATIONS：

Automotive: Door handle, Smart seats

.
