3614 Series Precision Board to Board Connectors: Application Solutions for Industrial Automation and Medical Equipment
3614 Series Precision Board to Board Connectors: Application Solutions for Industrial Automation and Medical Equipment
.

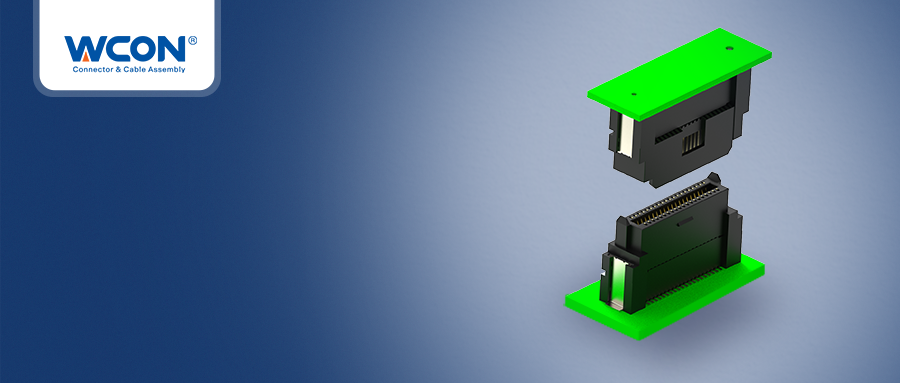

The 3614 series precision board-to-board connectors feature an ultra-small pitch of 0.80 mm, allowing for efficient space utilization. The stacking height of the male and female pairs is both flexible and variable, ranging from 10.00 mm to 22.00 mm, with the number of circuits spanning from 20 to 160. Whether for precise industrial automation equipment or complex medical devices, these connectors can help you identify the most suitable application solution.
.
The 3614 series precision board-to-board connectors are designed, manufactured, and tested in strict accordance with industry standards, such as EIA-364, to ensure that each connector meets world-class quality levels. We are dedicated to providing customers with high-performance and highly reliable connection solutions to help them excel in a competitive market.
.
.
| Product features |

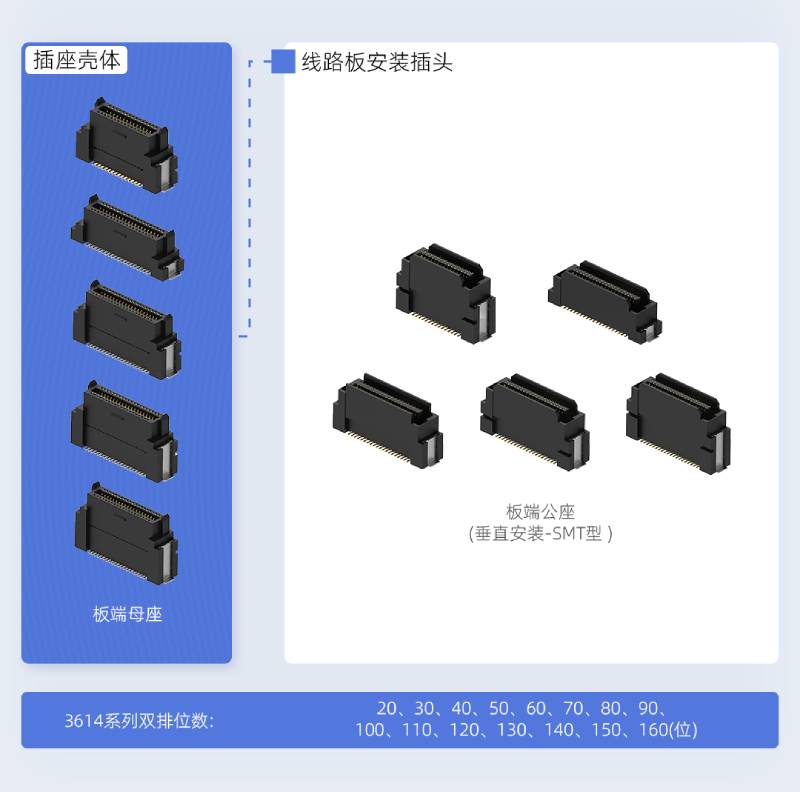

| The number of circuits ranges from 20 to 160 |
| Provide 25 different mating height options |
| The pin holder adopts surface mount technology (SMT) |
| The unique anti-mismatching structure design effectively avoids mismatching |
| Simple convex lock design, male and female plug-in with audible feedback |
| Includes a positioning column to ensure accurate placement on the circuit board. |
| Parameters |
| Rated current:0.5A |
| Operating temperature:-40°C~+105°C |
| Contact resistance:65mΩ Max |
| Insulation resistance:1000MΩ/Min |
| Withstand voltage:AC 250V/Min |
.
Data sheet
.
Application
- Industrial Automation:
- Applied to industrial automation control equipment, such as PLC, inverter, and servo drive, to achieve efficient and stable connections between circuit boards.
- Medical Equipment:
- In medical electronic equipment and testing devices, precise connections between internal circuit boards are essential for ensuring accurate transmission and processing of medical data.
.
Product Information
https://www.wcon.com/search.html?keyword=3614
.
